Name: Asus PRIME B760-PLUS, Intel B760, 1700, ATX, 4 DDR5, VGA, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2
Brand: Asus
Price: 117.97 GBP
Availability: OutOfStock

Asus PRIME B760-PLUS, Intel B760, 1700, ATX, 4 DDR5, VGA, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2

2-3 Days

Asus PRIME B760-PLUS, Intel B760, 1700, ATX, 4 DDR5, VGA, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2

Based on 0 reviews. - Write a review

£117.97

Ex. VAT: £98.31

Stock: 2-3 Days
Model: AUMBB760PLPR

Asus

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Delivery

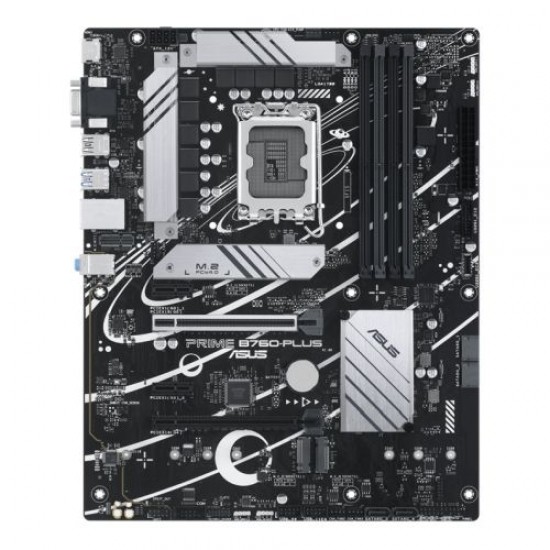

ASUS Prime B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1700

Chipset

Intel B760

CPU Support

Click here for CPU support

RAM Technology

DDR5 (Dual Channel)
Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem II

RAM Slots

4 x DIMM

RAM Speeds

Up to 7200+(OC)

Maximum Memory

192GB

Graphics

Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports

1 x VGA
1 x HDMI
1 x DisplayPort

PCI/PCI Express

1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
2 x PCIe 3.0 x1

Storage

4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x2

RAID

Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

Wireless

LAN

2.5GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

Rear:
1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen1 Type-A
2 x USB 2.0

Front:
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1
4 x USB 2.0

Back Panel I/O Ports

1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x VGA
1 x HDMI
1 x Vertical M.2 (Key E)
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks

Internal I/O Connectors

1 x 4-pin CPU Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
3 x Addressable Gen2
1 x Aura RGB

1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel
1 x Thunderbolt (USB4)

Accessories

2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw Packages for M.2 SSD
1 x User guide

Warranty

3 Years
