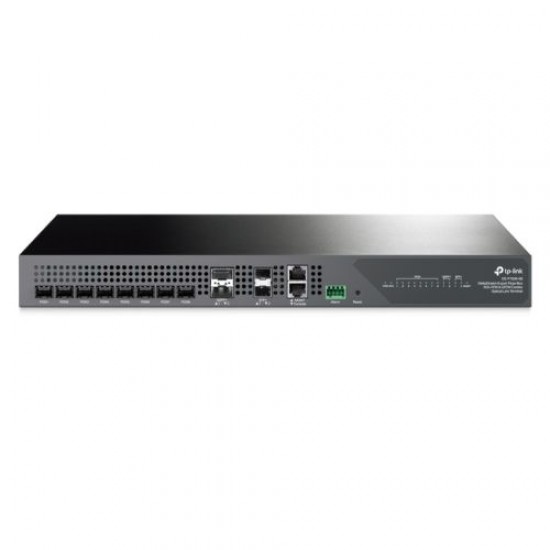

Name: TP-LINK Aginet (DS-P7500-08) DeltaStream 8-port Pizza-box XGS-PON & GPON Combo Optical Line Terminal, 8 PON Ports, Dual PSUs, Centralized Management
Brand: TP-Link
Price: 4285.19 GBP
Availability: OutOfStock

TP-LINK Aginet (DS-P7500-08) DeltaStream 8-port Pizza-box XGS-PON & GPON Combo Optical Line Terminal, 8 PON Ports, Dual PSUs, Centralized Management

2-3 Days

TP-LINK Aginet (DS-P7500-08) DeltaStream 8-port Pizza-box XGS-PON & GPON Combo Optical Line Terminal, 8 PON Ports, Dual PSUs, Centralized Management

Based on 0 reviews. - Write a review

£4,285.19

Ex. VAT: £3,570.99

Stock: 2-3 Days
Model: TER-8TPDELTACOMBO

TP-Link

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Delivery

DeltaStream 8-Port Pizza-Box XGS-PON & GPON Combo Optical Line Terminal

8x PON Ports: 8x XGS-PON & GPON combo ports support both XGS-PON and GPON service delivery.
High Scalability: Supports 1:128 splitting ratio for GPON services and 1:256 for XGS-PON.
High-Speed Uplink Ports: 2x 40G QSFP+ ports and 2x 10G SFP+ ports offer high-bandwidth uplink connectivity.
Dual Power Supplies: Carrier-class reliability with dual hot-swappable power supplies: AC, DC, or mixed-power supplies.
L2 & Advanced L3 Functions: Rich and robust functions satisfy flexible deployment and scalability needs.
Centralized Management: Supports the management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI.

*Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.

nterface(s)

8 x XGS-PON & GPON Combo Ports (SFP+)
2 x 40G QSFP+ Ports
2 x 10G SFP+ Ports
1 x RJ45 Management Port
1 x RJ45 Console Port
1 x Alarm Port

Button

Reset Button

Power Supply

Dual Power Supplies: 2 AC, 2 DC or AC+DC,
AC: 100V~240V, 50/60Hz
DC: -38.4V~-72V
Power Consumption: Max. 109.2W

Data Rates

GPON:
Downstream: 2.5 Gbps, Upstream: 1.25 Gbps

XGS-PON:
Downstream: 9.953 Gbps, Upstream: 9.953 Gbps

Wavelength

GPON:
Tx: 1577 nm
Rx: 1270 nm

XGS-PON:
Downstream: 9.953 Gbps, Upstream: 9.953 Gbps

Distance

20 km

Max. Splitting Ratio

1:128 for GPON, 1:256 for XGS-PON

DHCP

DHCP Server
DHCP Relay

Multi-Service

Multi-Service Traffic Identify and Rate Limit

QoS

IEEE 802.1p/DSCP QoS
Voice VLAN
Auto VoIP

Routing

Static Routing

Mulitcast

IGMP Snooping
MLD Snooping

Security

ACL
802.1x Authentication
ARP Inspection
IP Source Guard

ONU Security:
Rouge ONU Detection and Isolation

Management

OMCI:
Standard OMCI Management Supported

Centralized Management:
Large-Scale Devices Management
OLT Batch Configure, Upgrade, Reboot
Multi-Site Management
Intelligent Network Monitoring
Real-time Network Overview

Dimensions

440 x 330 x 44 mm

Environment

Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C(-40°F~158°F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

Package Contents

Optical Line Terminal DS-P7500-8
AC Power Cord
Console Cable
Mouting Brackets, Screws and Rubber Feet
Installation Guide

Warranty

3 Years
