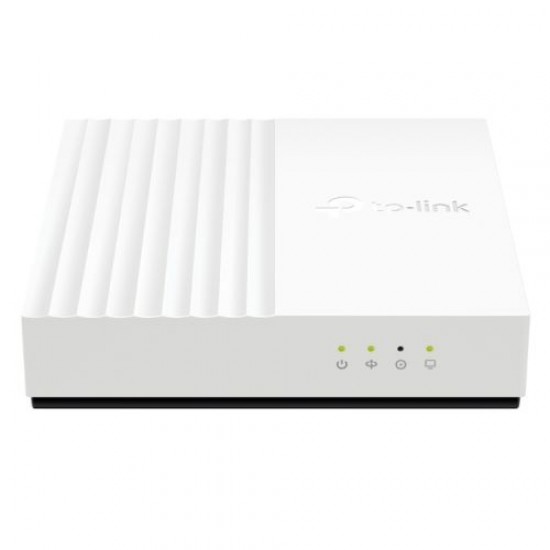

Name: TP-LINK Aginet (XGZ030) 1-Port XGS-PON Terminal, Symmetrical 10G Connectivity, Remote Management
Brand: TP-Link
Price: 71.99 GBP
Availability: OutOfStock

TP-LINK Aginet (XGZ030) 1-Port XGS-PON Terminal, Symmetrical 10G Connectivity, Remote Management

2-3 Days

TP-LINK Aginet (XGZ030) 1-Port XGS-PON Terminal, Symmetrical 10G Connectivity, Remote Management

Based on 0 reviews. - Write a review

£71.99

Ex. VAT: £59.99

Stock: 2-3 Days
Model: TER-1TPXGS-PON

TP-Link

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Delivery

1-Port XGS-PON Terminal

Symmetrical 10G Connectivity: XGS-PON technology delivers 10 Gbps upstream and downstream transmissions simultaneously.*
10G Wired Connections: 1x 10GE LAN port enables ultra-fast network sharing and connections.
Ease of Use: Quick and hassle-free installation with intelligent power-saving.
Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management

*Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

Interface(s)

1 x XGS-PON Port
1 x 10G RJ45 Port

Button

Power On/Off Button
Reset Button

Power Supply

12V/1A

IEEE Standards

IEEE 802.1p, 802.1Q, 802.1X, 802.1D, 802.1w
IEEE 802.3, 802.3.u, 802.3ab, 802.3x

Data Rates

Downstream Speeds: 10 Gbps*
Upstream Speeds: 10 Gbps*

*Actual network speed may be limited by the rate of the products Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

Wavelength

Upstream: 1270 nm
Downstream: 1577 nm

Distance

0-20 km Max

GPON Standards

ITU-T G.9907.1, ITU-T G.988

Optical Module

Class E1

Receiver

Super-TIA

Transmitter

DFB laser

VLAN

802.1Q tag VLAN, Q in Q VLAN
VLAN transparent mode/VLAN translation
mode/VLAN trunk mode
Authentication based on SN and password

Security

AES encryption
Packet filter based on VLAN

Management

Local management: WebGUI, Telnet
Remote management: OMCI

IGMP

IGMP v1/v2/v3

Advanced Features

Upstream and Downstream FEC
Dynamic Bandwidth Allocation (DBA) support NSR/SR
Up to 32 T-CONTs and 256 GEM ports
Optical power detection
Dying Gasp
Terminal Silent mechanism
802.3az EEE energy conservation
Schedule Reboot
LED Schedule

Dimensions

120 x 120 x 27.85 mm

Environment

Operating Temperature: 0°C–40°C (32°F–104°F)
Storage Temperature: -40°C–60°C (-40°F–140°F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

Package Contents

XGS-PON Terminal
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

Warranty

3 Years
