TP-LINK Aginet (TL-SM7110-SR) 40GBase-SR QSFP+ MPO Transceiver, Fiber up to 41.25Gbps Over OM3 Fiber within 150m

TP-LINK Aginet (TL-SM7110-SR) 40GBase-SR QSFP+ MPO Transceiver, Fiber up to 41.25Gbps Over OM3 Fiber within 150m
2-3 Days
TP-LINK Aginet (TL-SM7110-SR) 40GBase-SR QSFP+ MPO Transceiver, Fiber up to 41.25Gbps Over OM3 Fiber within 150m
TP-LINK Aginet (TL-SM7110-SR) 40GBase-SR QSFP+ MPO Transceiver, Fiber up to 41.25Gbps Over OM3 Fiber within 150m
Based on 0 reviews. - Write a review
£57.59
Ex. VAT: £47.99
  • Stock: 2-3 Days
  • Model: SWI-SFPMODTP-40GMPO
TP-Link
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

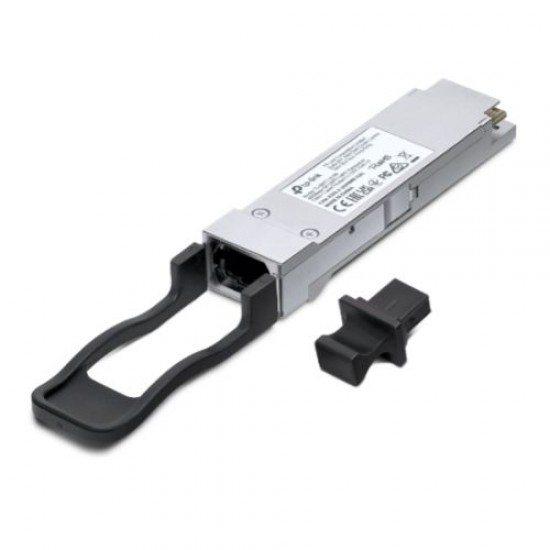

40GBase-SR QSFP+ MPO Transceiver

  • Enables ultra-fast fiber connections up to 41.25 Gbps over OM3 fiber within 150 m*
  • Supports 40GBASE-SR4/QDR application and compatible with QSFP+ Electrical MSA SFF-8436.
  • Supports hot swapping feature for quick and easy installation and application.
  • Supports the OMCI protocol and DDM (Digital Diagnostics Monitoring) for centralized management and real-time monitoring.


 *Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.
Device Type
QSFP+ Module
Cable
Multi-mode Fiber
Fiber Type
Multi-mode (50/125 MMF)
Max. Cable Length
Max. 150m (OM3)
Data Rate
40GBASE-SR4 at 10.3124 Gbps per Lane
Wave Length
830 nm - 870 nm (Typ. 850 nm)
Port Type
Device: QSFP+
Fiber: MPO
Diagnostic Function
Monitors parameters such as voltage, transceiver power, and temperature
Additional Features
Extinction Ratio: > 3 dB
Receiver Sensitivity: < -10.2 dBm
Rx Optical Power Tolerance: > 2.5 dBm
Tx Optical Power: 6~2.4dbm
Saturation Optical Power: >2.5 dBm
Hot Swap: Yes
Nominal Voltage: 3.3 V (< +/- 5%)
Electrical Level: Data Interface: CML
Control Interface: LVTTL
Package Contents
QSFP+ Transceiver TL-SM7110-SR
Quick Installation Guide

Warranty
3 Years
